GTM-20LV Series 208V Modular UPS Power Supply 20~160kVA

🔺60VA/100kVA/160kVA Rack-Mounted Modular Uninterruptible Power Supply(ups).

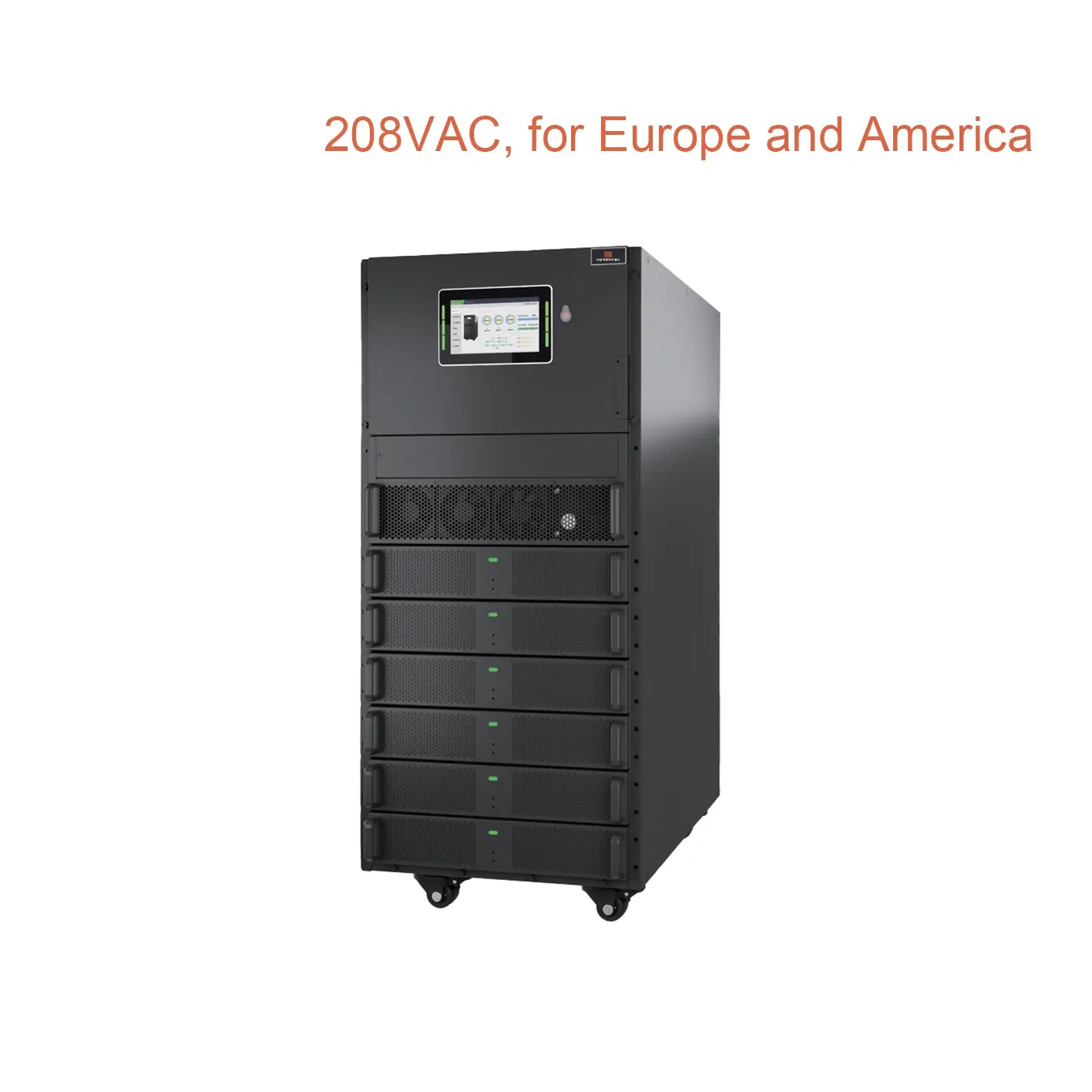

🔺208VAC low voltage,meet the requirements of Europe and America.
🔺3P/3P, Online double conversion.
🔺Application for Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy etc.

Mounted in 19 inch rack, or stand alone.

7 inch touch LCD, with Internet of Things (IoT) functions.

High reliability and environment adaptability, with protection of components level.

Extreme high power density,20kW in 2U, friendly for space and maintenance.

Option of 30A charger module for long backup applications.

Tag:

Inquire Now

Introduction
Parameters
Download

Product Introduction

The GTM-20LV Series Modular ups power supply is a versatile and reliable modular UPS designed to offer high power density and flexible configurations for critical applications. With a power range of 20kVA to 100kVA, this UPS is perfect for government, finance, IT, education, transportation, broadcasting, medical, and energy sectors.

Key Features

Power Range: 20kVA to 100kVA – Suitable for medium to large-scale applications.
Online Double Conversion: Provides clean and stable power for sensitive equipment.
10-inch Touch LCD: Features IoT functions for easy management and monitoring.
High Power Density: Offers compact design and space-saving features, making it ideal for environments with limited space.
Battery Module: Equipped with internal 7/9Ah modular battery strips, capable of configuring up to 24 battery module strips for extended runtime.
Full Metal Battery Strips (Optional): Provides additional durability and a sleek design option.
Mains Input/Output: Comes with standard configuration for easy installation.

The following is the temperature rise test of the uninterruptible power supply under full load (The temperature of parts does not exceed 100° under full load, extending the life cycle of parts and ensuring the stability of the UPS.）

GTM-20LV Series 208V Modular UPS Power Supply 20~160kVA

The modular uninterruptible power supply (UPS) PCB design is highly integrated,with regular wiring and minimal assembly.At the same time,the picture shows that the power supply and signal layout are reasonable,which greatly reduces the interference between signals and improves heat dissipation efficiency and design margin.Maximize the performance of the product and ensure the service life and stability of the machine.

Applications

Government and Finance: Ensures continuous power for sensitive operations and data security.
IT and Data Centers: Provides uninterrupted power for servers, networking equipment, and storage.
Healthcare and Education: Keeps critical medical equipment and educational technology running smoothly.
Energy and Broadcasting: Powers energy-intensive infrastructure and broadcast systems.

Our Factory

We welcome you to visit our factory to explore the quality and capabilities of our products firsthand.

Model		GTM60/20-LV	GTM100/20-LV	GTM160/20-LV
Rate Power		60kVA/60kW	100kVA/100kW	160kVA/160kW
Main input	Input	3P5W (3P+N+PE)
	Rate Voltage	200/208/220VAC(L-L)
	Rate Freq.	50/60Hz
	Input PF	>0.99
	Current distortion	THDi<3%(100% Linear load)
	Voltage range	166-261VAC(L-L)full load; 125-166VAC (L-L) power derate from 100% to 50%
	Freq. range	40-70Hz
Battery	Rate voltage	±120VDC
	Charging capacity	20%*Pout
	Charging accuracy	±1%
Bypass	Rate voltage	200/208/220VAC(L-L)
	Voltage range	Range: -40%- +25% , Settable, default -20% +15%
	Overload	<110%, long time operation; 110%<load<125%, 5 mins;125%<load<150%,1 min
Inverter	Rate voltage	200/208/220VAC(L-L)
	Rate Freq.	50/60Hz
	Output PF	1
	Voltage accuracy	±1.0%
	Load response	<5% (20% - 80% -20% step load)
	Recovery time	< 20ms (0% - 100% -0% step load)
	Output THDu	<1%(linear load),<5% (non-linear load according to IEC 62040-3)
	Overload	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms
	Frequency accuracy	0.1%
	Synchronize window	Settable, ±0.5Hz-±5Hz, default ±3Hz
	Slew rate	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
	Phase Accuracy	120°±0.5
System	Efficiency	Normal Mode≥94%; Battery mode≥94%
	Display	LED + 7 inch touch LCD		LED + 10 inch touch LCD
	Certification- Safety	IEC62040-1, IEC60950-1
	Certification- EMS	IEC62040-2, IEC61000-4-2(ESD), IEC61000-4-3(RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
	IP degree	IP20
	Configuration	USB, RS232, RS485, Dry contact, Cold start
	Option	SNMP card, AS400 card, Parallel kit, LBS, Air filter, Bottom entry kit
	Environment	0-40℃(operation); -25 ~70℃ (storage); 0-95% (Humidity, non-condensing)
	Noise(dB)(1 meter)	65dB @ 100% load, 62dB @ 45% load
Dimention	cabinet(WDH)mm	482816796 (18U wheels not included)	4828161018(23U wheels not included)	60010002000

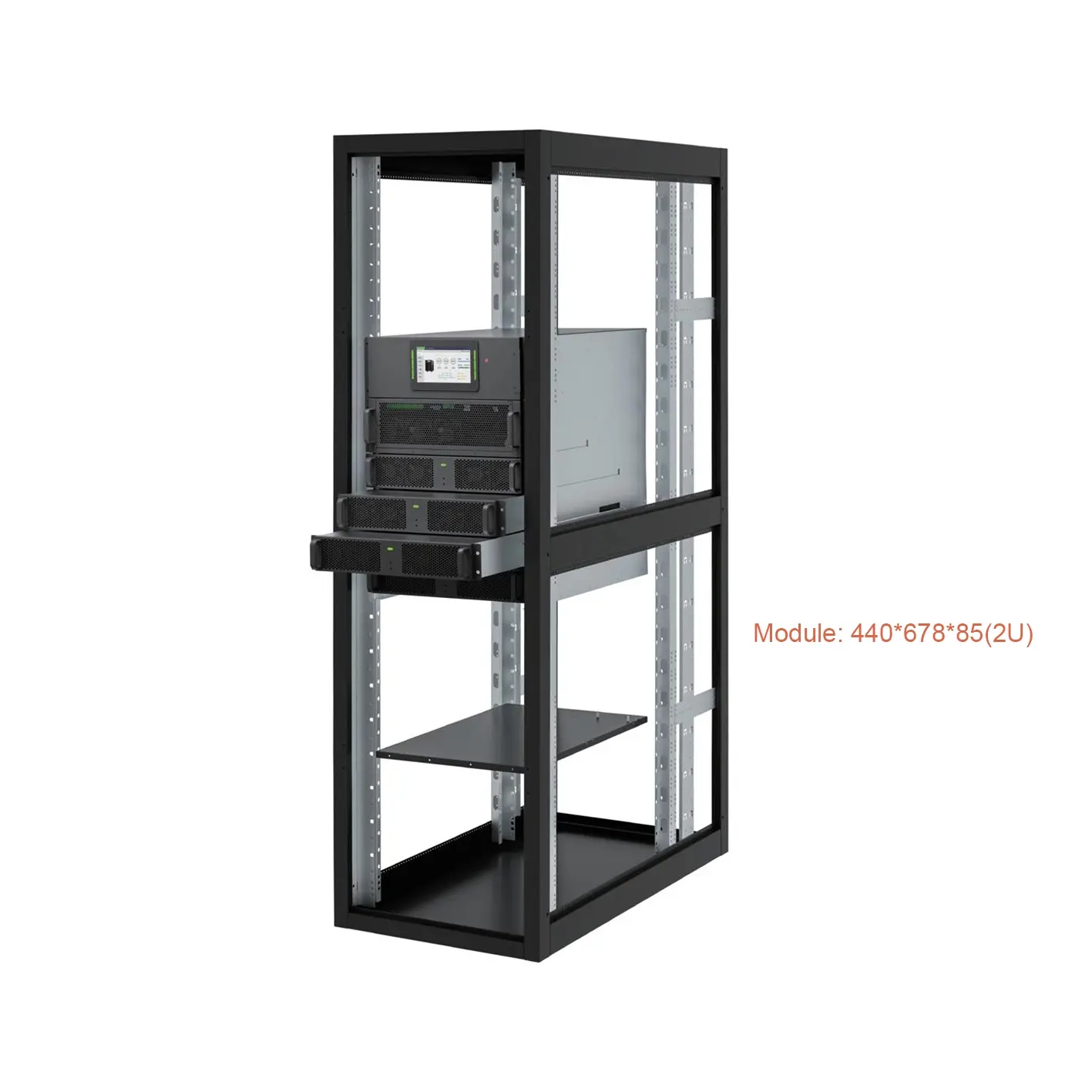

	module(WDH)mm	44067885 (2U)
Weight(kg)	Cabinet	113	132	260
	Module	23
Power Module rated capacity		20kW
