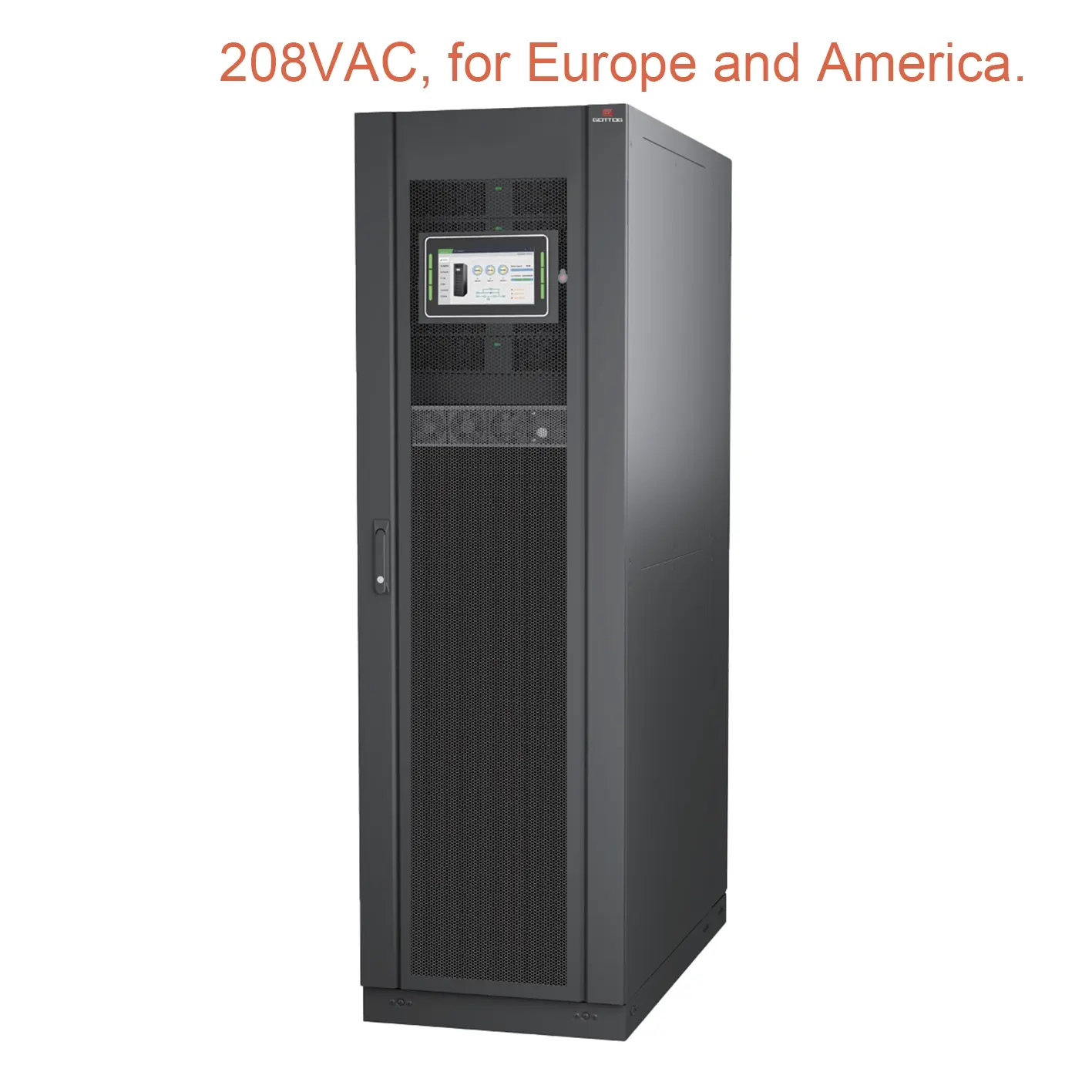

GTM-20LV Series 208V 20~100kVA Modular UPS Power Supply Intemal 7/9Ah modular battery strips

🔺60VA/100kVA Rack-Mounted Modular Uninterruptible Power Supply（ups).
🔺208VAC low voltage,meet the requirements of Europe and America.
🔺3P/3P, Online double conversion.
🔺Application for Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy etc.

Mounted in 19 inch rack, or stand alone.

10 inch touch LCD, with Internet of Things (IoT) functions.

High power density, small volume.

High reliability and environmental adaptability.

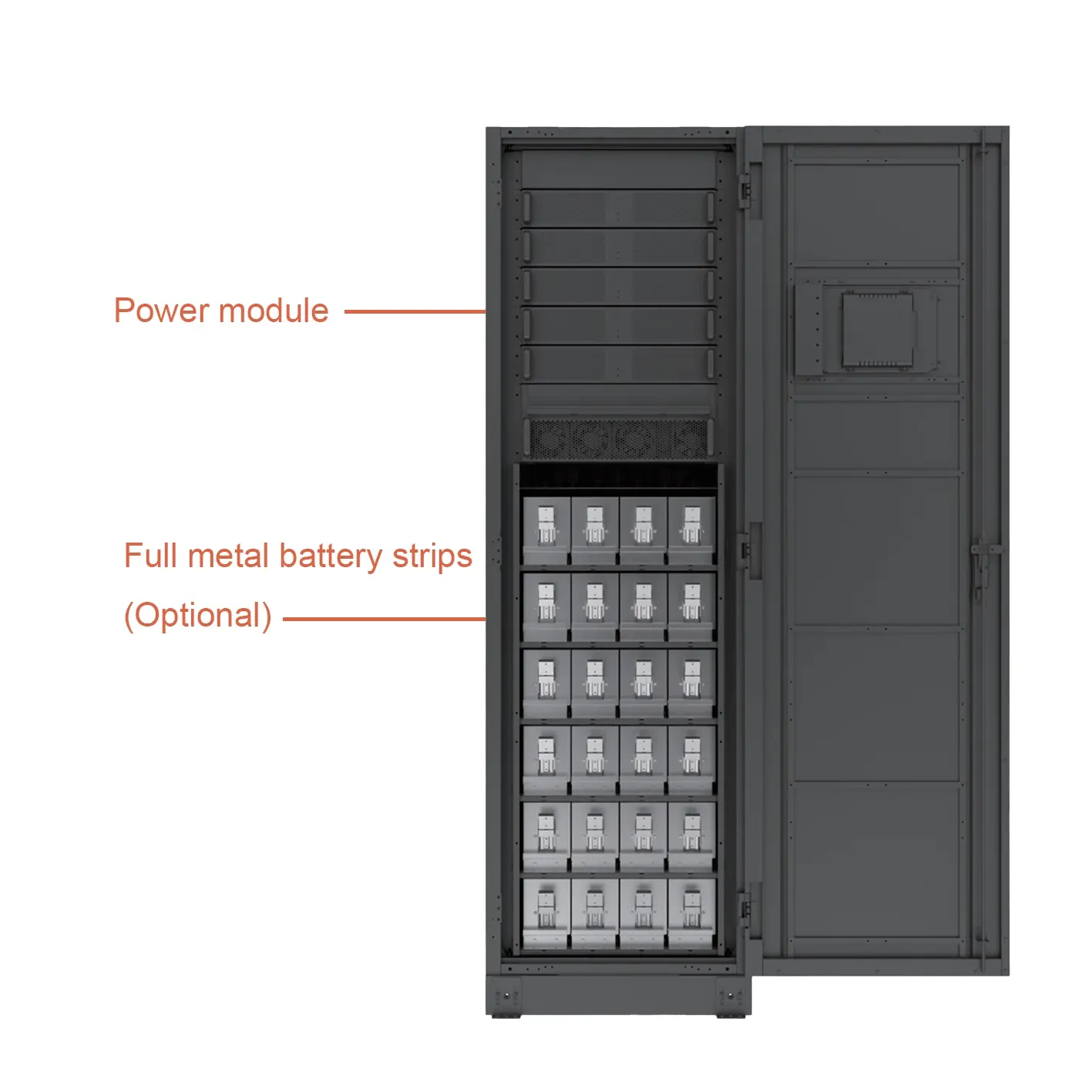

Optional full metal battery strips, with internal batteres capable of configuring up to 24 battery module strips.

Standard configuration for mains inputoutput, maintenance bypass, battery breaker.

Tag:

Inquire Now

Introduction
Parameters
Download

Product Introduction

The GTM-20LV Series modular online ups is a high-performance modular UPS designed for critical applications in various industries, including government, finance, IT, education, transportation, broadcasting, medical, and energy sectors. With a 20kVA to 100kVA power range, this UPS offers superior protection, backed by internal 7/9Ah modular battery strips, making it the ideal choice for environments requiring uninterrupted power and scalable energy storage.

Key Features

Power Range: 20kVA to 100kVA for medium to large-scale applications.
Operation Mode: Online double conversion, ensuring continuous, clean power.
Internal 7/9Ah Modular Battery Strips:
- Supports modular battery design, offering flexibility and scalability.
- Each UPS unit comes equipped with 7/9Ah modular battery strips for customizable capacity.
- Can support up to 24 battery module strips, providing enhanced backup runtime and reducing the need for additional external batteries.
High Power Density: Compact design optimized for space-saving, with 10kW in just 2U.
10-inch Touch LCD: With IoT functions, for efficient real-time monitoring and control.
High Reliability & Environmental Adaptability: Ensures long-lasting performance in various operating environments.
Optional Full Metal Battery Strips: For customers requiring additional durability and high-capacity configurations.

The following is the temperature rise test of the uninterruptible power supply under full load (The temperature of parts does not exceed 100° under full load, extending the life cycle of parts and ensuring the stability of the UPS.）

GTM-20LV Series 208V 20~100kVA Modular UPS Power Supply Intemal 7/9Ah modular battery strips

Applications

Government: Stable power for mission-critical infrastructure.
Finance: Ensures continuous operation of financial systems.
IT: Provides protection for servers, networking equipment, and data centers.
Education: Powers institutions, including schools and universities.
Transportation: Maintains power for transportation systems.
Broadcasting: Guarantees uptime for broadcasting equipment.
Medical: Ensures medical systems and equipment remain operational.
Energy: Protects energy management systems from power interruptions.

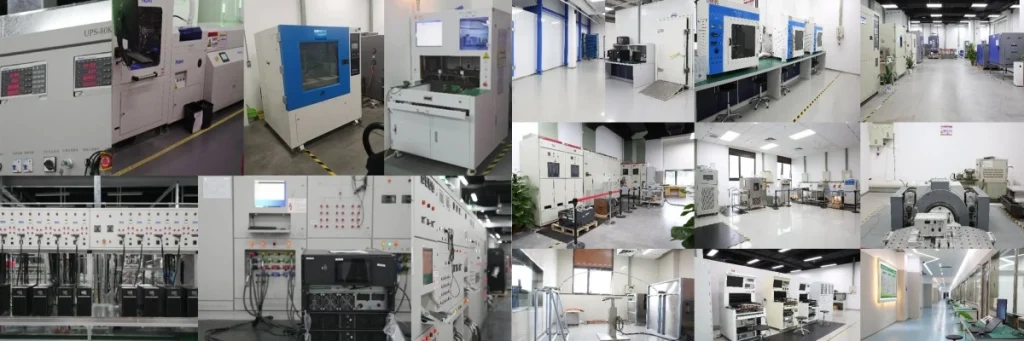

Our Factory

We welcome you to visit our factory to explore the quality and capabilities of our products firsthand.

Model		GTM60B/20-LV-240	GTM100B/20-LV-240
Rate Power		60kVA/60kW	100kVA/100kW
Main input	Input	3P5W (3P+N+PE)
	Rate Voltage	200/208/220VAC(L-L)
	Rate Freq.	50/60Hz
	Input PF	>0.99
	Current distortion	THDi<3%(100% Linear load)
	Voltage range	166-261VAC(L-L)full load; 125-166VAC (L-L) power derate from 100% to 50%
	Freq. range	40-70Hz
Battery	Rate voltage	±120VDC
	Model	UPS with internal batteries,12VDC/7~9Ah
	Quantity	240PCS
	Charging capacity	20%*Pout
	Charging accuracy	±1%
Bypass	Rate voltage	200/208/220VAC(L-L)
	Voltage range	Range: -40%~ +25% , Settable, default -20%~ +15%
	Frequency range	50/60Hz, Settable: ±1Hz, ±3Hz, ±5Hz
Inverter	Rate voltage	200/208/220VAC(L-L)
	Rate Freq.	50/60Hz
	Output PF	1
	Voltage accuracy	±1.0%
	Load response	<5% (20% - 80% -20% step load)
	Recovery time	< 20ms (0% - 100% -0% step load)
	Output THDu	<1%(linear load),<5% (non-linear load according to IEC 62040-3)
	Overload	110%,1 hour; 125%,10 mins; 150%,1 min; >150%,200ms
	Frequency accuracy	0.1%
	Synchronize window	Settable, ±0.5Hz-±5Hz, default ±3Hz
	Slew rate	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
	Crest factor	3:1
	Phase Accuracy	120°±0.5
System	Efficiency	Normal Mode≥94%; Battery mode≥94%
	Display	LED + 7 inch touch LCD
	Certification- Safety	IEC62040-1, IEC60950-1
	Certification- EMS	IEC62040-2, IEC61000-4-2(ESD), IEC61000-4-3(RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
	IP degree	IP20
	Configuration	USB, RS232, RS485, Dry contact, Air filter
	Option	SNMP card, AS400 card, Parallel kit, LBS, Cold start
	Environment	0-40℃(operation); -25 ~70℃ (storage); 0-95% (Humidity, non-condensing)
Dimention	cabinet(WDH)mm	60010002000
	module(WDH)mm	44067886 (2U)
Weight(kg)	Cabinet(No include batteries)	260	280
	Module	23
Power Module rated capacity		20kW
