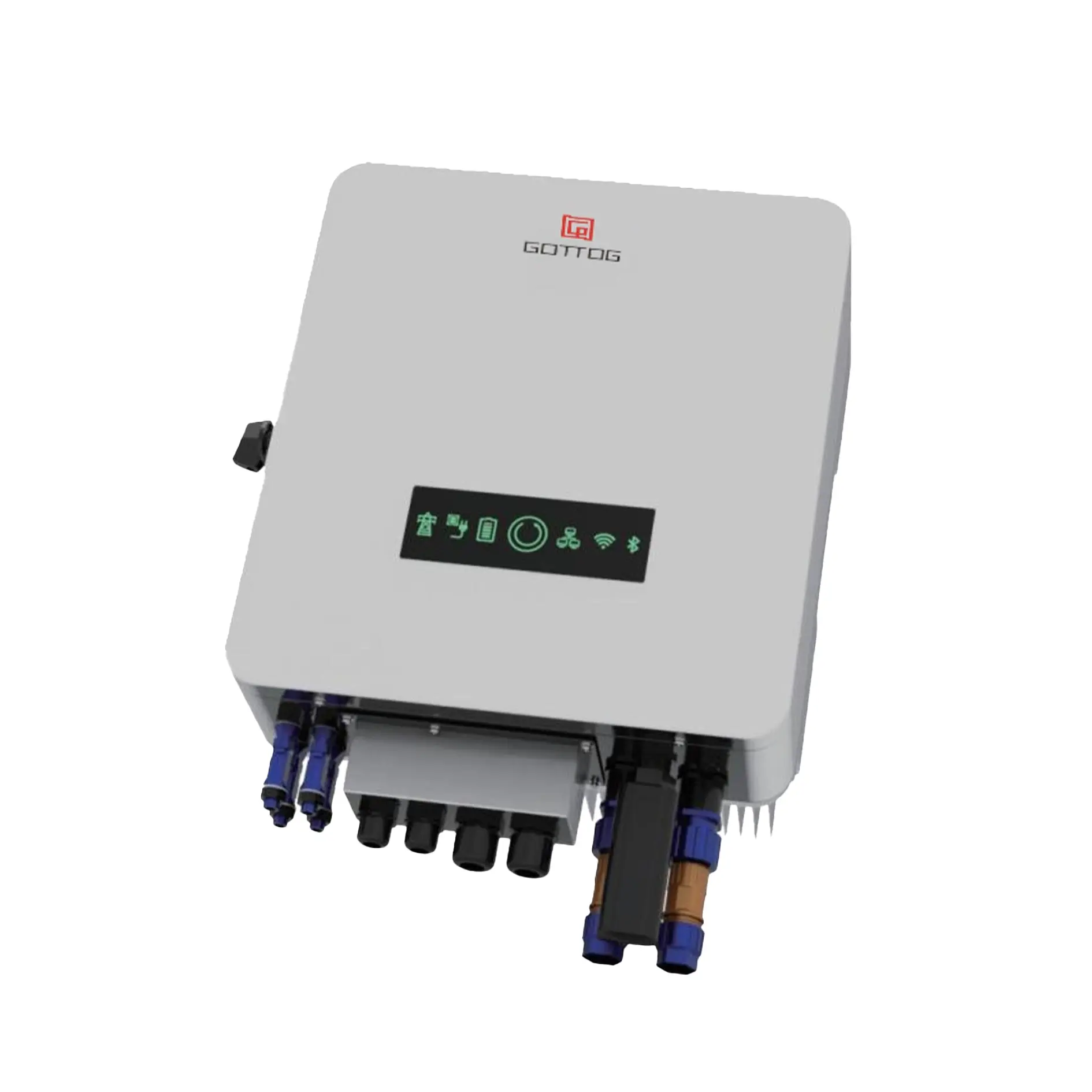

GT-SH Series Single-Phase Inverter for Home Energy Storage

🔺 IP66 Protection Level: High dust and water resistance.
🔺 Wide Operating Temperature Range: -25°C ~ 60°C, with strong adaptability.
🔺 PV + Energy Storage Integration: Integrates photovoltaic and energy storage, supports lead-acid and lithium batteries, with flexible configurations.
🔺 Smart Switching: Off-grid switching time <10ms, ensuring continuous operation of critical loads.
🔺 Multiple Protection Functions: Supports insulation, leakage current, and ground fault detection. Includes protections for lightning, reverse input, overvoltage/overcurrent/short-circuit, and anti-islanding.

Maximum Input Power: 4800W - 9600W

Maximum Input Voltage: 550V

MPPT Voltage Range: 40-500V

Supports lead-acid and lithium batteries

THDi < 2%

Maximum Efficiency: >97.9%

 Inquire Now
  • GT-SH Series Single-Phase Inverter for Home Energy Storage

Share:

  • Introduction

  • Parameters

  • Download

Application Fields:

  • Suitable for household energy storage applications, utilizing the price difference between peak and valley hours to save on electricity bills.
  • Suitable for residential rooftop photovoltaic systems, both saving electricity costs and ensuring power safety during grid instability.
Model GT-SH03 GT-SH03.6 GT-SH04.6 GT-SH05 GT-SH06
PV input
Maximum input Power (w) 4800 5700 7000 8000 9600
Maximum Input Voltage (V) 600
MPPT Voltage Range (V) 90-520
Rated Input Voltage (V) 330
Number of MPPTs/Strings per MPPT 2/1,1
Maximum InputCurrent per MPPT(A) 16,16
Maximum Short-CircuitCurrent per MPPT (A) 24,24
Battery input
Battery Type Lead-acid, Lithium-ion
Rated Voltage (V) 48
Battery Voltage Range (V) 40-60
Maximum Discharge Power (w) 3000 3800 4600 5000 6000
Maximum Charge/Discharge Current (A) 50/60 100/75 100/95.8 100/104 100/120
Grid Parameters
Rated Output Power (V) 3000 3600 4600 5000 6000
Maximum ApparentOutput Power (VA) 3300 3960 5060 5500 6600
Rated Voltage (v) 220/230
Output Frequency (Hz) 50/60Hz, ±5Hz
Maximum Output Current (A) 15 18 23 25 30
Rated Grid Current (A) 13.6 16.4 20.9 22.7 27.3
Input Voltage Range (V) 188-265
Maximum Input Current (A) 20.4 24.6 31.3 34 41
THDi ＜2%
Off-Grid Parameters
Rated Output Power (W) 3000 3600 4600 5000 6000
Maximum Output Power (VA) 4500 5400 6900 7500 9000
Maximum Output Current (A) 21.7-40
Overload Capability 110% 10min; 125% 5min;125%-150% 1min;160%-200% 1s
THDu 2%(linear load)
Switching Time (ms) <10ms
Efficiency
Efficiency Max Efficiency: >97.9%; European Efficiency: >97.2%
PV Charging Efficiency >97.5%
Battery Charge/DischargeEfficiency >95%
General Parameters
Operating Environment Temperature: -25 to 60°C; Altitude: Derating above 45°C;70%<4000m, derating above 2000m
Display LED + App + Bluetooth
Communication Interface CAN,RS485,Ethernet, Wi-Fi, GPRS (Optional)
Certification Standards VDE-A-N 4105/ VDE 0124,VDE 0126/ UTE C15/ VFR:2019,CE10-21,C10/11,IEC 62116,IEC 61727,IEC 60068,IEC 61683,EN50583,EN50549,G98 or G99
