GT-BU Offline Backup Uninterruptible power supply 600~2000VA

🔺Compact size.
🔺Touch screen LCD to display UPS information circularly.
🔺Excellent microprocessor control guarantees high reliability.
🔺Boost and buck AVR for voltage stabilization.
🔺Auto restart while AC is recovering.
🔺Simulated sine wave output.
🔺Off-mode charging.
🔺Cold start function.
🔺Generator compatible (option).
🔺110/120VAC system is only available for GT 400/600/800VA.

Automatic voltage regulating function, stablilze output voltage, ensure security and stability of electrical equipment.

Perfect battery management technology, automatic adjust the termination voltage and extend battery life.

Support cold start function, start UPS without electric supply, meet emergency demand.

Tag:

Inquire Now

Introduction
Parameters

🔺This offline Backup has compact size.

The small size and reduced weight facilitate easy transport and deployment, allowing for quick setup or relocation as backup power needs change. The compact form factor enables versatile mounting options and simplifies integration into existing environments without significant rearrangement or dedicated large footprints.

🔺Simulated sine wave output.
🔺Off-mode charging.
🔺Cold start function.

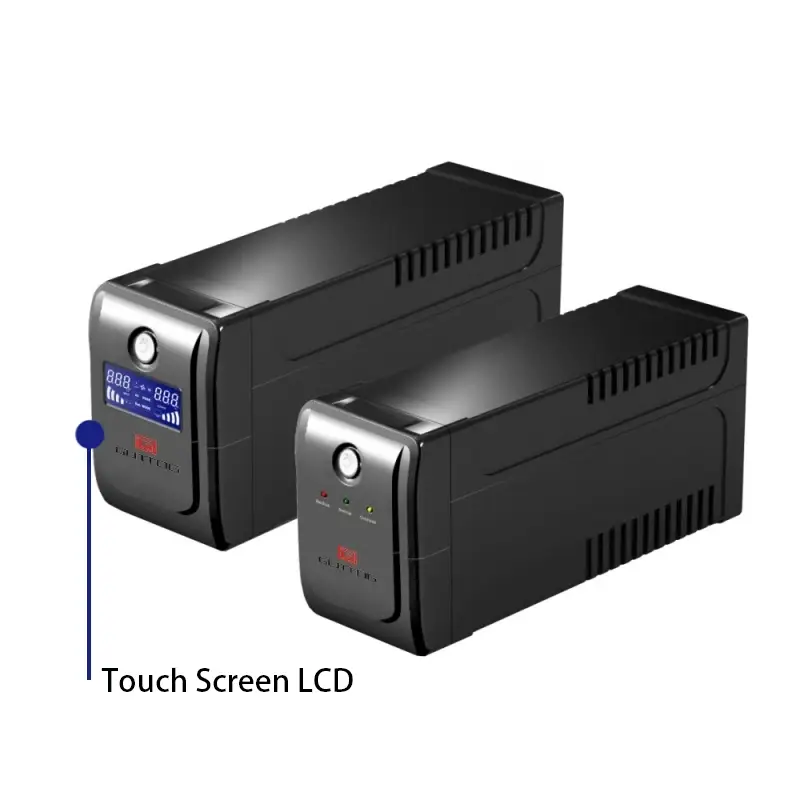

🔺Touch screen LCD to display UPS information circularly.

Touch screen LCD display is used to cyclically present key UPS status and parameter information. This allows users to interactively view critical data like input/output voltage, battery charge level, load percentage, runtime estimation, and system alarms in a rotating sequence, without needing manual navigation between screens.

600-2000kVA-kW-offline-backup-battery-uninterruptible-power-supply

🔺Excellent microprocessor control guarantees high reliability.
🔺Boost and buck AVR for voltage stabilization.
🔺Auto restart while AC is recovering.
🔺Generator compatible (option).
🔺110/120VAC system is only available for GT400/600/800VA backup battery.

Model		GT400BU	GT600BU	GT800BU	GT1000BU	GT1500BU	GT2000BU
Capacity		400 VA / 240 W	600 VA / 360 W	800 VA / 480 W	1000 VA / 600 W	1500 VA / 900 W	2000 VA / 1200 W
Input	Voltage	110/120 VAC* or 220/230/240 VAC
	Voltage Range	81-145 VAC* / 162-290 VAC
	Frequency Range	60/50 Hz (auto sensing)
Output	Voltage	110/120 VAC* or 220/230/240 VAC
	AC Voltage Regulation (Batt. Mode)	±10%
	Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
	Transfer Time	Typical 2-6 ms
	Waveform (Batt. Mode)	Simulated Sinewave
Battery	Battery Type & Number	12 V 4.5 Ah x 1	12 V/7 Ah x 1	12 V 9 Ah x 1	12 V/7 Ah x 2	12 V/9 Ah x 2	12 V/9 Ah x 2
	Typical Recharge Time	4-6 hours recover to 90% capacity
Indicators	LCD Display	Input voltage, output voltage, battery capacity, load level and UPS status
Alarm	Battery Mode	Sounding every 10 seconds
	Low Battery	Sounding every second
	Overload	Sounding every 0.5 second
	Fault	Continuously sounding
Full Protection		Overload, discharge, and overcharge protection
Physical	Dimension, D X W X H (mm)	300 x 101 x 142			320 x 130 x 182
	Net Weight (kgs)	3.7	4.4	5	7.8	10.4	10.6
Environment	Humidity	0-90 % RH @ 0- 40°C (non-condensing)
	Noise Level	Less than 40dB				Less than 45dB
* 110/120VAC system is only available for Apex 400/600/800VA.
