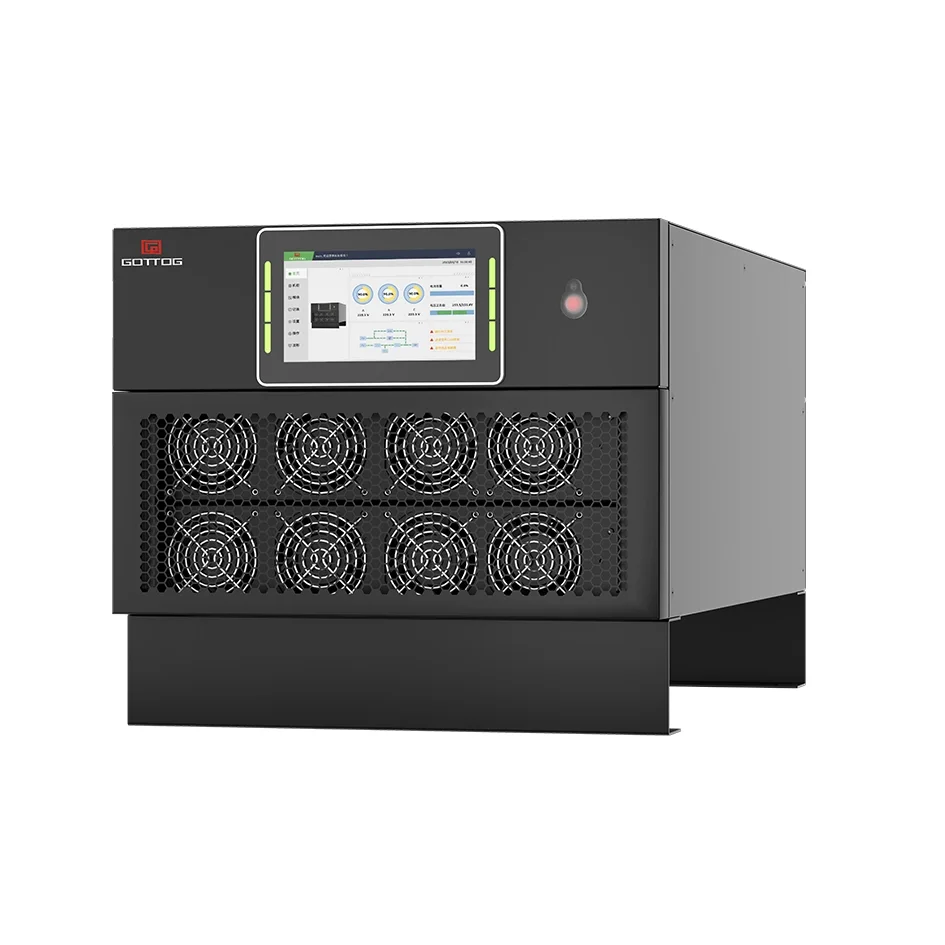

GTM-10 Series Modular Online Uninterruptible Power Supply 20/40/60kVA

🔺20kVA/40kVA/60kVA Modular Uninterruptible Power Supply（ups).
🔺3P/3P,3P/1P,Online double conversion.
🔺the output power factor is 1.
🔺Supported battery voltage: Default ±240VDC (±192~±264VDC, configurable), compatible with upper/lower wiring.
🔺Application for Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.

Mounted in 19 inch rack, or stand alone

7 inch touch LCD, with IoT functions

High reliability and environment adaptability, with protection of components level

Extreme high power density, 20kW in 2U, friendly for space and maintenance

Option of 30A charger module for long backup applications

Tag:

Inquire Now

Introduction
Parameters
Download

Product Features and Advantages

Modular Design: GOTTOGPOWER GTM-10 Seires modular ups features a modular design, offering flexible scalability to meet the power requirements of different-sized applications.
Supports sodium-ion batteries, can be parallelized, with a maximum of 6 units in parallel, allowing for a system capacity of up to 360kVA.
Full Switchgear Design: Includes main switch, bypass switch, maintenance switch, and output switch, enhancing the system’s operational convenience and maintenance safety.
Flexible Battery Configuration: Supports adjustable battery configurations from 20 to 50 batteries and offers an optional neutral-less configuration to accommodate various battery needs.
High Efficiency: With an input power factor greater than 0.99, GOTTOGPOWER GTM-10 Seires modular ups ensures high energy efficiency, reducing waste and operational costs.
Device-Level Protection: Provides comprehensive device-level protection, ensuring the system’s safety and stability under different environmental conditions.
Strong Adaptability: Supports a wide input frequency range (40–70Hz), making it adaptable to various power environments.

GTM-10 Series Modular Online Uninterruptible Power Supply 20/40/60kVA

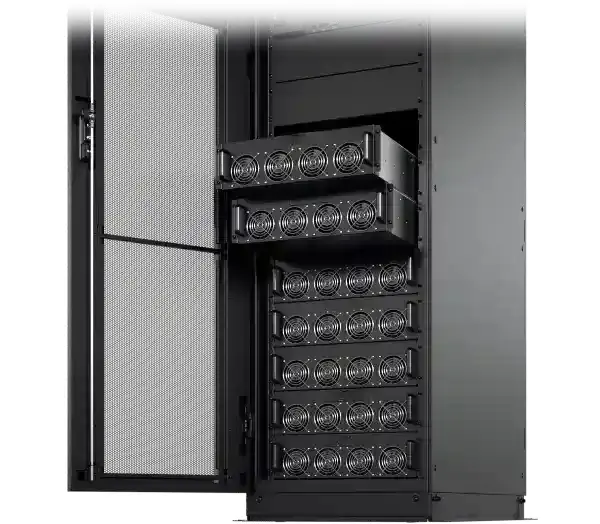

The benefits of hot-swappable modular UPS systems include enhanced flexibility, minimal downtime for maintenance, and easy scalability without disrupting operations.

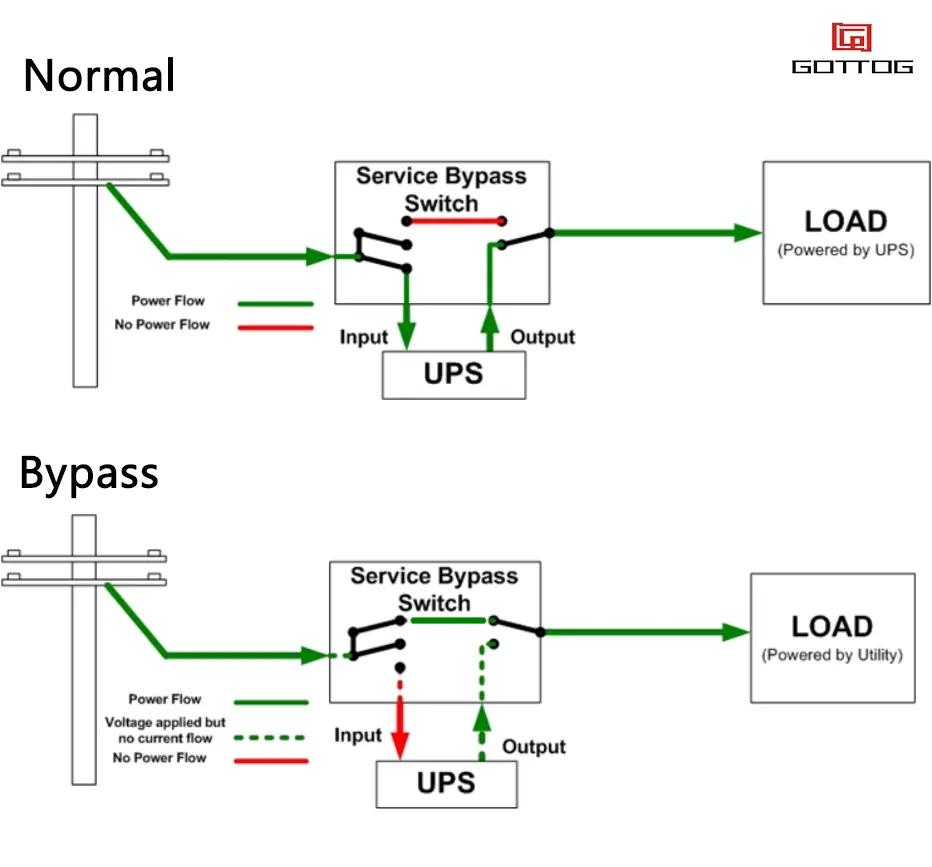

Double Conversion Online UPS uses components like a rectifier, inverter, static and manual bypass switches, and a battery. The inverter always powers the load, and if it fails, static bypass switches to mains power, or manual bypass is used for maintenance. This setup allows the output voltage and frequency to be independent of the input, making it suitable for frequency conversion. Commonly used for medium to large power (above 10kVA), this UPS is “on-line,” meaning the load is always powered by the inverter, regardless of the AC input status.

GOTTOGPOWER Modular Uninterruptible power supply (ups) online highly integrated new PCB design, truly achieving minimalist assembly, reasonable power and signal layout, reducing signal interference, improving heat dissipation efficiency and design margin,high stability,high performance.

GTM040/10 RACK MODULES online Uninterruptible Power Supply（ups) installation comes standard with swivel casters
Convenient for on-site mobile positioning and fixation of Uninterruptible power supply

Floor mounted corner wheels facilitate movement and fixation

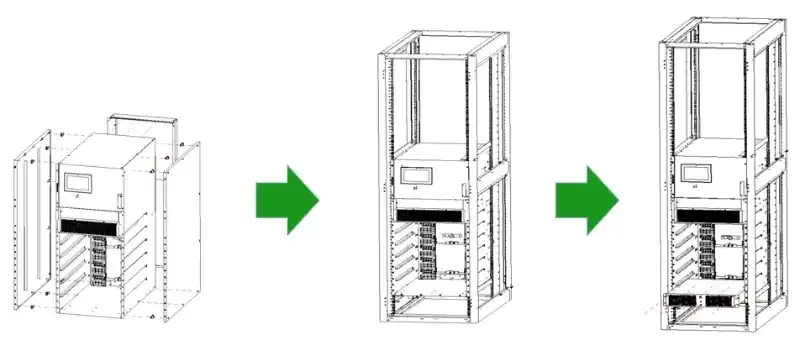

Display diagram of minimalist installation into the server

GOTTOGPOWER is committed to providing you with the most convenient services

Our Factory

We welcome you to visit our factory to experience the quality and performance of our products firsthand.

Model		GTM020/10	GTM040/10	GTM060/10
Rate Power		20kVA/20kW	40kVA/40kW	60kVA/60kW
Main input	Input	3P5W (3P+N+PE)
	Rate Voltage	380/400/415VAC(L-L) 220/230/240VAC(L-N)
	Rate Freq.	50/60Hz
	Input PF	>0.99
	Current distortion	THDi<3%(100% Linear load)
	Voltage range	304 478VAC(L-L)full load 304 228VAC (L-L) power derate from 100% to 75%
	Freq. range	40-70Hz
Battery	Rate voltage	±240VDC
	Charging capacity	20%*Pout
	Charging accuracy	±1%
Bypass	Rate voltage	380/400/415VAC(L-L)220/230/240VAC(L-N)
	Voltage range	Range: -40%- +25% , Settable, default -20% +15%
	Overload	110%, long time operation; 110%< load<125%, 5 mins; 125%<load<150%,1 min; >150%,1 second
Inverter	Rate voltage	380/400/415VAC(L-L) 220/230/240VAC(L-N)
	Rate Freq.	50/60Hz
	Output PF	1
	Voltage accuracy	±1.0%
	Load response	<5% (20% - 80% -20% step load)
	Recovery time	< 20ms (0% - 100% -0% step load)
	Output THDu	<1%(linear load),<5% (non-linear load according to IEC 62040-3)
	Overload	110%,1 hour 125%,10 mins 150%,1 min >150%,200ms
	Frequency accuracy	0.001
	Synchronize window	Settable, ±0.5Hz-±5Hz, default ±3Hz
	Slew rate	Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
	Phase Accuracy	120°±0.5
System	Efficiency	Normal Mode≥96%;Battery mode≥96%
	Display	LED + 7 inch touch LCD
	Certification- Safety	IEC62040-1, IEC60950-1
	Certification- EMS	IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge)
	IP degree	IP20
	Configuration	USB, RS232, RS485, Dry contact, Cold start
	Option	SNMP card, AS400 card, Parallel kit, LBS, Air filter, Bottom entry kit, Wheels kit
	Environment	0-40 (operation) -25 ~70 (storage) 0-95% (Humidity, non-condensing)
	Noise(dB)(1 meter)	65dB @ 100% load, 62dB @ 45% load
Dimention	cabinet(WDH)mm	482700662(15U wheels not included)		482700840(19U wheels not included)
	module(WDH)mm	44055585 (2U)
